Mild Steel Black Close Taper Nipple Pipe Fitting EN10241 (BS1387)

Size

Please select from the options above.

Quantity: - +

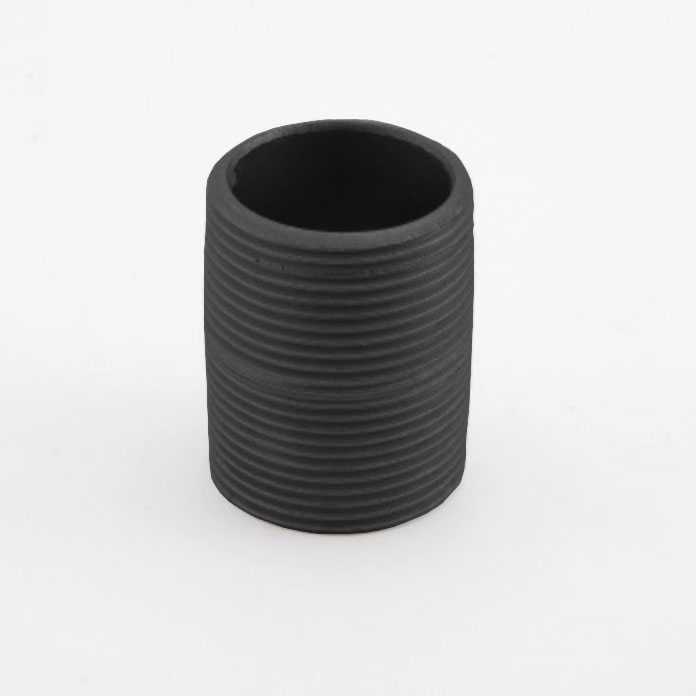

A black (self colour) mild steel heavy weight close taper nipple that conform to EN10241

BS EN 10241 is the new European standard that now covers mild steel fittings previously included under BS1740 and BS1387.

Design Test Pressure:

Hydrostratic test at ambient temperature

Fittings made from tube (tubulars) - 50 bar

Fabricated fittings - 75 bar

Fittings made from solid bar, forgings or heavy wall thickness BS EN 10255 tube (most fittings in sizes 50mm or smaller) - 150 bar

Standard: BS EN 10241 (formerly BS1387)

Material:Black (Self Colour) Mild Steel

Thread: Male BSPT taper threaded (ISO 7-1, BS EN 10226-1) with the exception of running nipples where parallel threads are to ISO 228-1

Maximum Operating Pressure: 25 bar

Operating Temperature Range: 0° - 220°

Also available in galvanised finish.
