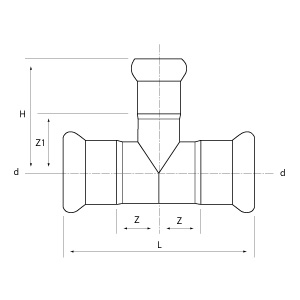

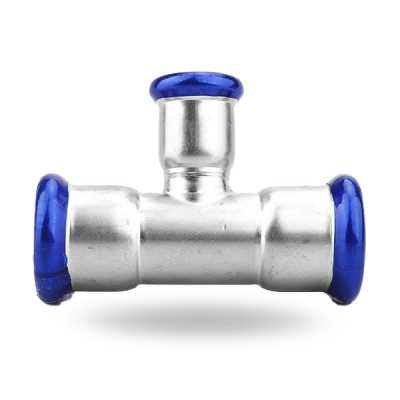

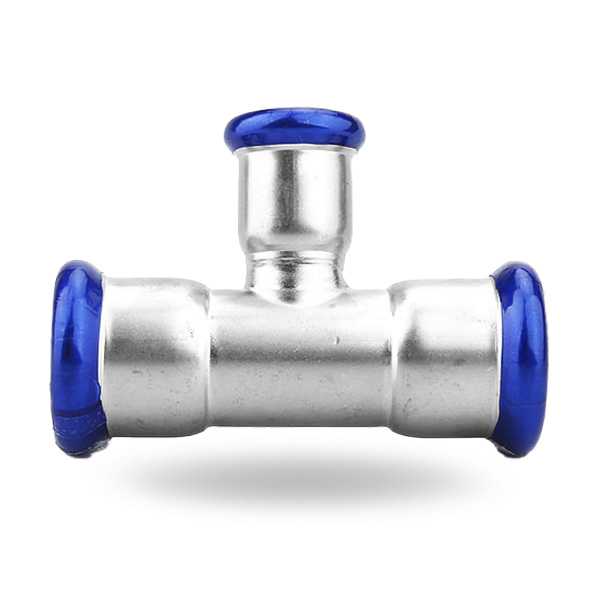

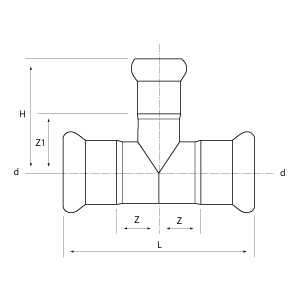

Reducing Tee

Standards & Accreditations:

WRAS Approved

DVGW Standard

STAINLESS STEEL PRESS FITTINGS

Material: Stainless Steel

Grade: 316/L (1.4404) UNS S31603 to standard EN10088 with Leak Before Press (LBP) design

O-Ring: Fittings incorporate a black EPDM (Ethylene Propylene Diene Monomer) O-ring. Green FKM and Blue Silicone VMQ O-rings can be purchased seperately.

Maximum Pressure: 16Bar from -20?C to 120?C

For use with: M-profile press tools.

STAINLESS STEEL PRESS FITTINGS FOR GAS

Material: Stainless Steel

Grade: 316/L (1.4404) UNS S31603 to standard EN10088

O-Ring: Yellow HNBR (Hydrogenated Acrylonitrite Butadiene Rubber)

Maximum Pressure: 1Bar (max working pressure inside buildings) and 5Bar (max working pressure outside buildings) from -20?C to 70?C

For use with: M-profile press tools

Code Description Size Price
099P130R2215 22mm x 15mm Reducing Tee 22mm x 15mm
099P130R2815 28mm x 15mm Reducing Tee 28mm x 15mm
099P130R2822 28mm x 22mm Reducing Tee 28mm x 22mm
099P130R3515 35mm x 15mm Reducing Tee 35mm x 15mm
099P130R3522 35mm x 22mm Reducing Tee 35mm x 22mm
099P130R3528 35mm x 28mm Reducing Tee 35mm x 28mm
099P130R4215 42mm x 15mm Reducing Tee 42mm x 15mm
099P130R4222 42mm x 22mm Reducing Tee 42mm x 22mm
099P130R4228 42mm x 28mm Reducing Tee 42mm x 28mm
099P130R4235 42mm x 35mm Reducing Tee 42mm x 35mm
099P130R5415 54mm x 15mm Reducing Tee 54mm x 15mm
099P130R5422 54mm x 22mm Reducing Tee 54mm x 22mm
099P130R5428 54mm x 28mm Reducing Tee 54mm x 28mm
099P130R5435 54mm x 35mm Reducing Tee 54mm x 35mm
099P130R5442 54mm x 42mm Reducing Tee 54mm x 42mm
099P130R7615 76mm x 15mm Reducing Tee 76mm x 15mm
099P130R7654 76mm x 54mm Reducing Tee 76mm x 54mm
099P130R8815 89mm x 15mm Reducing Tee 89mm x 15mm
099P130R8854 89mm x 54mm Reducing Tee 89mm x 54mm
099P130R8876 89mm x 76mm Reducing Tee 89mm x 76mm
099P130R10815 108mm x 15mm Reducing Tee 108mm x 15mm
099P130R10854 108mm x 54mm Reducing Tee 108mm x 54mm
099P130R10876 108mm x 76mm Reducing Tee 108mm x 76mm
099P130R10888 108mm x 89mm Reducing Tee 108mm x 89mm
Please login to see prices.
