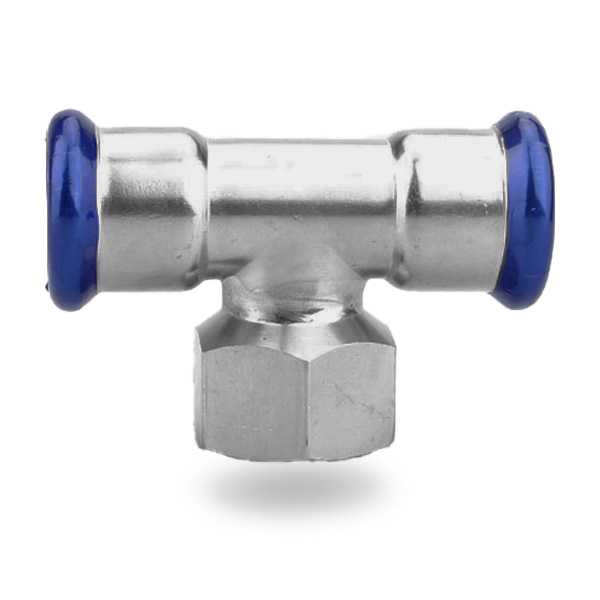

Tee with Female Thread

Standards & Accreditations:

WRAS Approved

DVGW Standard

STAINLESS STEEL PRESS FITTINGS

Material: Stainless Steel

Grade: 316/L (1.4404) UNS S31603 to standard EN10088 with Leak Before Press (LBP) design

O-Ring: Fittings incorporate a black EPDM (Ethylene Propylene Diene Monomer) O-ring. Green FKM and Blue Silicone VMQ O-rings can be purchased seperately.

Maximum Pressure: 16Bar from -20?C to 120?C

For use with: M-profile press tools.

Code Description Size Price
099P130T1512 15mm x 1/2" Tee with Female Thread 15mm x 1/2"
099P130T2212 22mm x 1/2" Tee with Female Thread 22mm x 1/2"
099P130T2234 22mm x 3/4" Tee with Female Thread 22mm x 3/4"
099P130T2812 28mm x 1/2" Tee with Female Thread 28mm x 1/2"
099P130T2834 28mm x 3/4" Tee with Female Thread 28mm x 3/4"
099P130T281 28mm x 1" Tee with Female Thread 28mm x 1"
099P130T3512 35mm x 1/2" Tee with Female Thread 35mm x 1/2"
099P130T35114 35mm x 1 1/4" Tee with Female Thread 35mm x 1 1/4"
099P130T4212 42mm x 1/2" Tee with Female Thread 42mm x 1/2"
099P130T42112 42mm x 1 1/2" Tee with Female Thread 42mm x 1 1/2"
099P130T5412 54mm x 1/2" Tee with Female Thread 54mm x 1/2"
099P130T542 54mm x 2" Tee with Female Thread 54mm x 2"
099P130R76X76X1/2 76mm x 1/2" Tee with Female Thread 76mm x 1/2"
099P130R762 76mm x 2" Tee with Female Thread 76mm x 2"
099P130R88X1/2 89mm x 1/2" Tee with Female Thread 89mm x 1/2"
099P130R10812 108mm x 1/2" Tee with Female Thread 108mm x 1/2"
099P130R108X2 108mm x 2" Tee with Female Thread 108mm x 2"
Please login to see prices.
