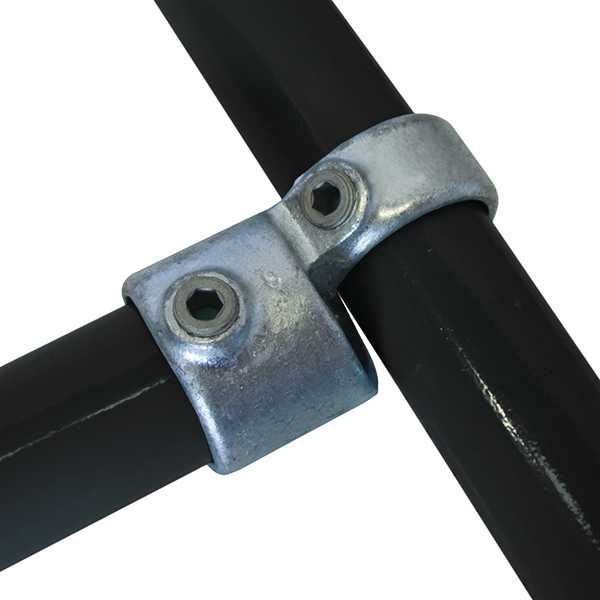

3/4" (G20) C25 Short Tee Swivel Tube/Pipe Clamp

Stock Code: 010C25G20
£2.19 (exc VAT)
£2.63 (inc VAT)
In Stock
Quantity: - +

The Short Tee Swivel fittings are normally used in pairs to allow corner joints of any angle between 90° and 180°. The fitting can also be used on staircases with a C02 and C03 fitting to accommodate landings used in conjunction with a short piece of tube and a C65 Plastic Stop End. When ordering, please specify the number of fittings required and not the number of pairs.

The G20 26.9mm range of tube clamps are designed to fit 26.9mm OD (3/4" NB) tube.

The smallest size in our range of tube clamps, the G20 range is mostly used for niche applications and constructions including lightweight clothing racks and lightweight frames.

Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

Size Conversion

Kee Klamp® - Size 5
Tubeclamps™ - Size A
Q Clamp® - Size 1
Intercamp® - A27

GUIDE TO TUBE SIZE REQUIRED

Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G203/4"20mm3/4"
G251"25mm1"
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
G502"50mm2"
