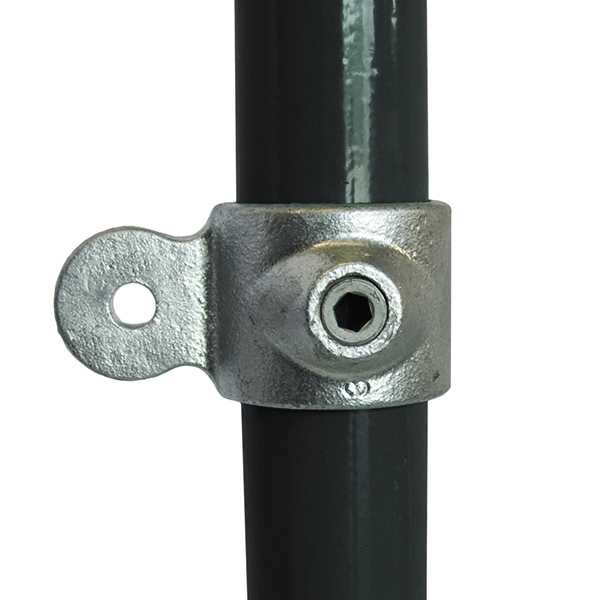

3/4" (G20) C35 Single Male Swivel Tube/Pipe Clamp

The Male Swivel is designed as part of the swivel combination group of fittings. It can be used on its own for use with a shackle and chain or with the C36 fitting to mount rails at an angle for slopes. It can also be used for attaching flat sheets or boards to a structure. It is also available assembled with the C36 fitting as a C45 Single Swivel Combination.

The G20 26.9mm range of tube clamps are designed to fit 26.9mm OD (3/4" NB) tube.

The smallest size in our range of tube clamps, the G20 range is mostly used for niche applications and constructions including lightweight clothing racks and lightweight frames.

Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

Size Conversion

Kee Klamp® - Size 5
Tubeclamps™ - Size A
Q Clamp® - Size 1
Intercamp® - A27

GUIDE TO TUBE SIZE REQUIRED

Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G203/4"20mm3/4"
G251"25mm1"
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
G502"50mm2"
