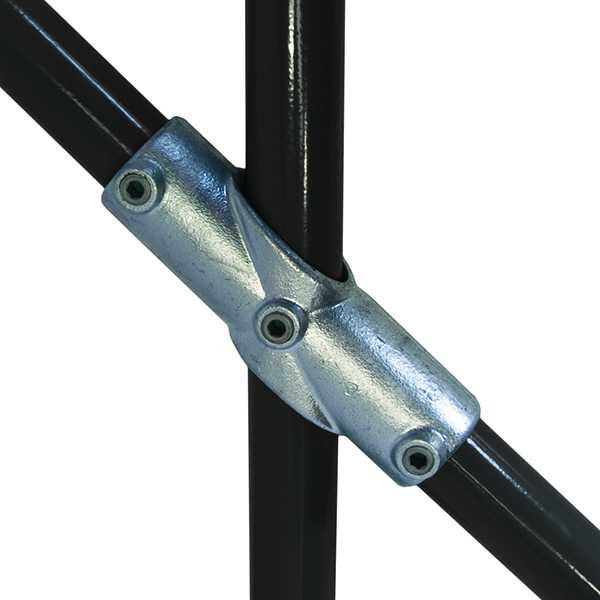

1" (G25) C28 Adjustable 2 Socket Cross Tube/Pipe Clamp

The Adjustable 2 Socket Cross fitting will accommodate any rake angle from 30° to 45°. This fitting is not recommended as the top fitting on a guardrail or balustrade systems, use the C29 Adjustable Short Tee.

The G25 33.7mm range of tube clamps are designed to fit 33.7mm OD (1" NB) tube.

The G25 range is commonly used for some handrail applications and is now being regularly seen in many high street clothing stores as display rails and frames as a coat hanger fits perfectly over the 33.7mm OD tube.

Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

Size Conversion

Kee Klamp® - Size 6
Tubeclamps™ - Size B
Q Clamp® - Size 2
Intercamp® - B34

GUIDE TO TUBE SIZE REQUIRED

Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G203/4"20mm3/4"
G251"25mm1"
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
G502"50mm2"
