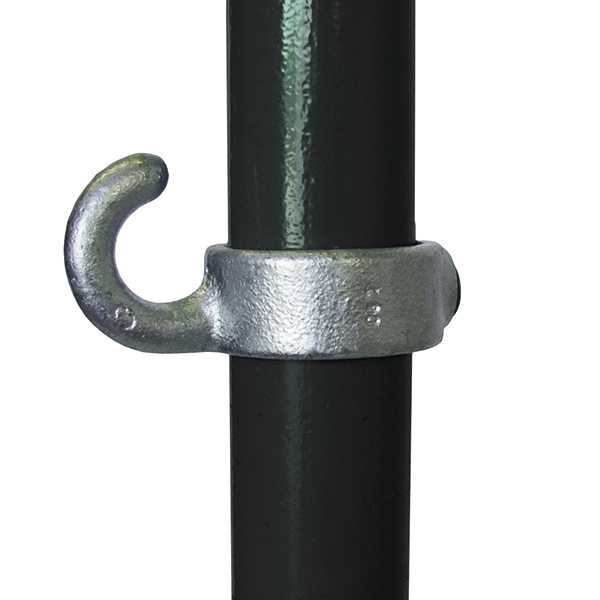

1 1/4" (G32) C33 Hook Tube/Pipe Clamp

This fitting is designed to provide an attachment for a chain.

The G32 42.4mm range of tube clamps are designed to fit 42.4mm OD (1 1/4" NB) tube.

The G32 range is a popular choice for most handrail applications, barriers and medium weight racking systems.

p>Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

Size Conversion

Kee Klamp® - Size 7
Tubeclamps™ - Size C
Q Clamp® - Size 3
Intercamp® - C42

GUIDE TO TUBE SIZE REQUIRED

Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G203/4"20mm3/4"
G251"25mm1"
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
G502"50mm2"
