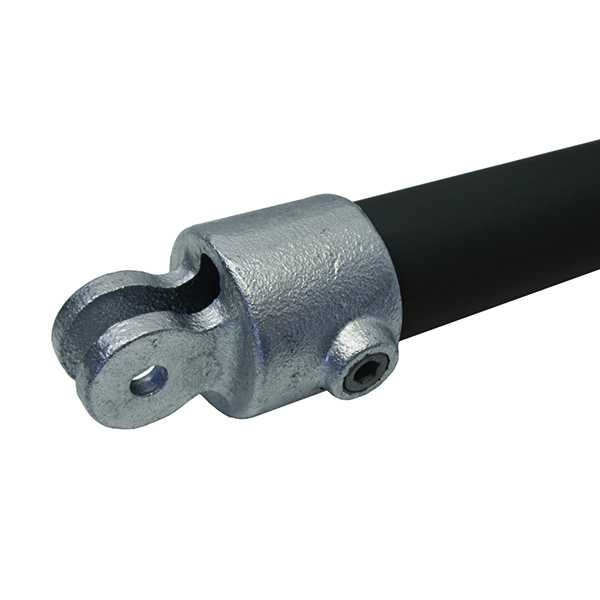

1 1/4" (G32) C36F Female Swivel Tube/Pipe Clamp

The Female Swivel is designed as part of the swivel combination group of fittings. It can be used with the C10, C35, C37, C38 and C39 male swivel fittings.

The G32 42.4mm range of tube clamps are designed to fit 42.4mm OD (1 1/4" NB) tube.

The G32 range is a popular choice for most handrail applications, barriers and medium weight racking systems.

p>Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

Size Conversion

Kee Klamp® - Size 7
Tubeclamps™ - Size C
Q Clamp® - Size 3
Intercamp® - C42

GUIDE TO TUBE SIZE REQUIRED

Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G203/4"20mm3/4"
G251"25mm1"
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
G502"50mm2"
