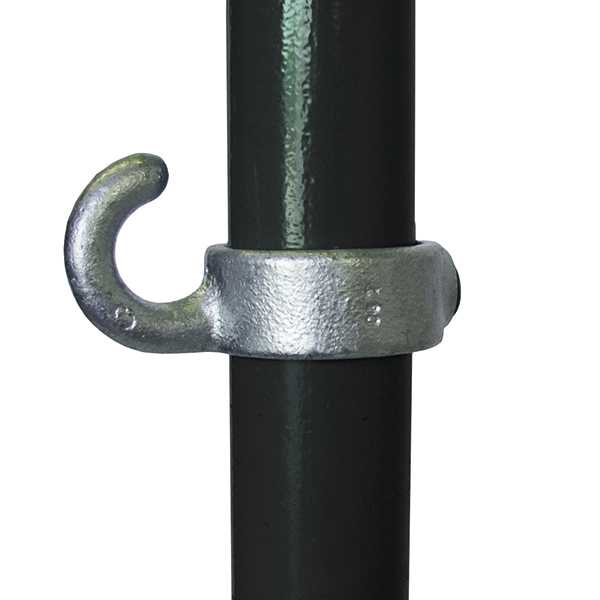

1 1/2" (G40) C33 Hook Tube/Pipe Clamp

Stock Code: 010C33G40
£2.11 (exc VAT)
£2.53 (inc VAT)
In Stock
Quantity: - +

This fitting is designed to provide an attachment for a chain.

The G40 48.3mm range of tube clamps are designed to fit 48.3mm OD (1 1/2" NB) tube.

The G40 is the conventional scaffold size of tube clamps and is suitable for guardrail applications, safety barriers, trolley bays and racking systems.

Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

Size Conversion

Kee Klamp® - Size 8
Tubeclamps™ - Size D
Q Clamp® - Size 4
Intercamp® - D48

GUIDE TO TUBE SIZE REQUIRED

Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G203/4"20mm3/4"
G251"25mm1"
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
G502"50mm2"
