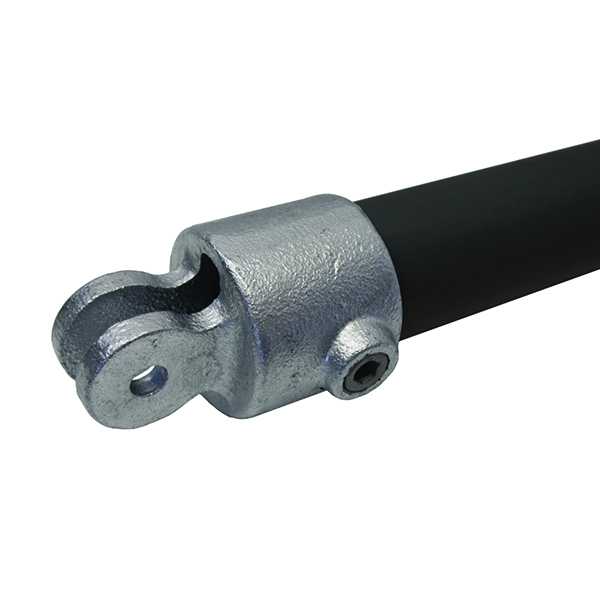

2" (G50) C36F Female Swivel Tube/Pipe Clamp

The Female Swivel is designed as part of the swivel combination group of fittings. It can be used with the C10, C35, C37, C38 and C39 male swivel fittings.

The G50 60.3mm range of tube clamps are designed to fit 60.3mm OD (2" NB) tube.

The G50 is the largest of our 5 sizes is particularly suitable for heavy weight constructions such as heavy duty trolley bays, barriers and industrial areas that are liable to come in contact with forklift trucks/other vehicles and constructions which are required to carry heavy loads such as racking.

Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

Size Conversion

Kee Klamp® - Size 9
Tubeclamps™ - Size E
Q Clamp® - Size 5
Intercamp® - E60

GUIDE TO TUBE SIZE REQUIRED

Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G203/4"20mm3/4"
G251"25mm1"
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
G502"50mm2"
