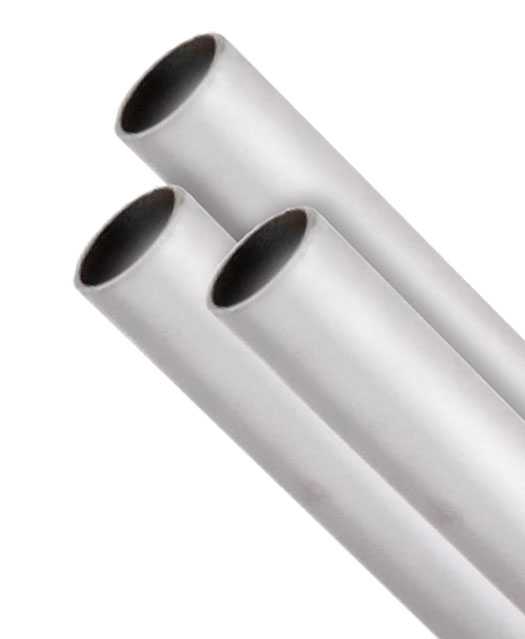

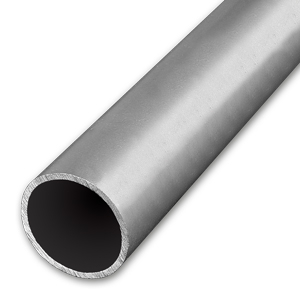

1 1/4" (32mm) 6.4m EN10255 Galv Medium Plain End Tube

A dual certified seam welded medium gauge galvanised tube to EN BS 10255 (previously BS1387) and BS EN 10217-1. Supplied finished with plain ends. Available in 6.4m full random lengths (FRL) or 3.2m half random lengths (HRL).


Size:

1 1/4" (32mm) Nominal Bore

Length:

Full Random Length (approx. 6.4m)

Outer Diameter:

42.4mm/1.688"

Wall Thickness:

3.25mm/0.128" (Medium Grade)

Max Operating Pressure:

Water - 28 bar, Air/steam - 14 bar

Standard:

EN10255 (BS1387) and EN10217-1

Material:

Mild steel

Tube Type:

Seam welded tube

Finish:

Hot dip galvanised/zinc coating to EN10240

Approvals:

Pressure Equipment Directive (PED) 2014/68/EU


Also available in heavy gauge and in self colour and red oxide finish.
