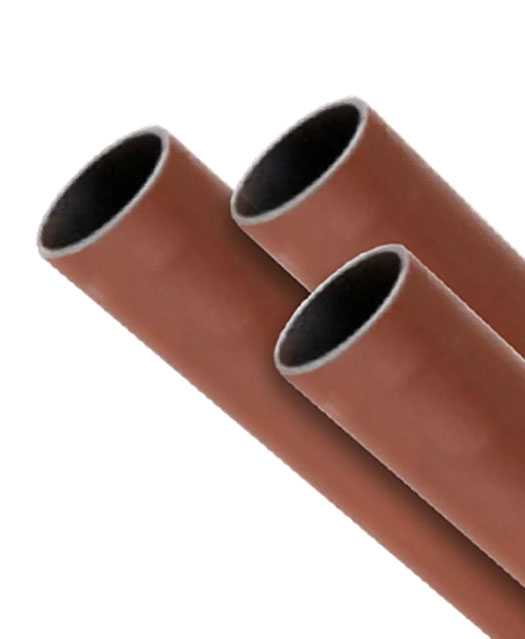

3/4" (20mm) 6.4m EN10255 Red Oxide Heavy Plain End Tube

A dual certified seam welded heavy gauge red oxide tube to EN BS 10255 (previously BS1387) and BS EN 10217-1. Supplied finished with plain ends. Available in 6.4m full random lengths (FRL) or 3.2m half random lengths (HRL).


Size:

3/4" (20mm) Nominal Bore

Length:

Full Random Length (approx. 6.4m)

Outer Diameter:

26.9mm/1.062"

Wall Thickness:

3.25mm/0.128" (Heavy Grade)

Max Operating Pressure:

Water - 42 bar, Air/steam - 21 bar

Standard:

EN10255 (BS1387) and EN10217-1

Material:

Mild steel

Tube Type:

Seam welded tube

Finish:

Red oxide primer painted finish

Approvals:

Pressure Equipment Directive (PED) 2014/68/EU


Also available in medium gauge and in galvanised and self colour finish.
