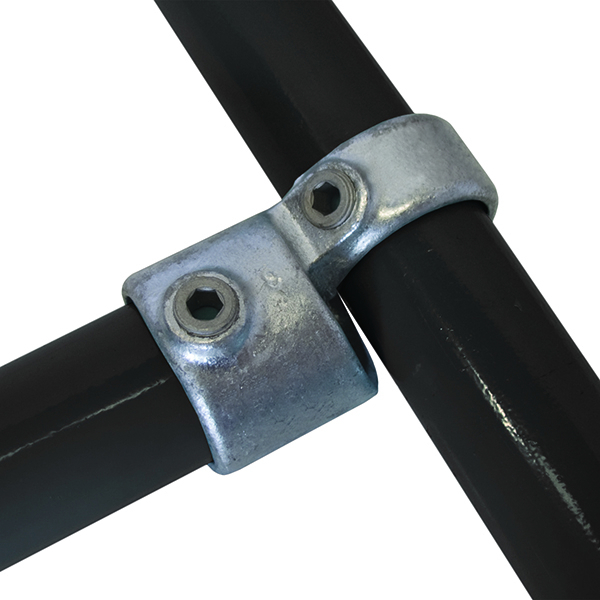

1 1/2" (G40) C25 Short Tee Swivel Tube/Pipe Clamp

The Short Tee Swivel fittings are normally used in pairs to allow corner joints of any angle between 90° and 180°. The fitting can also be used on staircases with a C02 and C03 fitting to accommodate landings used in conjunction with a short piece of tube and a C65 Plastic Stop End. When ordering, please specify the number of fittings required and not the number of pairs.

The G40 48.3mm range of tube clamps are designed to fit 48.3mm OD (1 1/2" NB) tube.

The G40 is the conventional scaffold size of tube clamps and is suitable for guardrail applications, safety barriers, trolley bays and racking systems.

Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

Size Conversion

Kee Klamp® - Size 8
Tubeclamps™ - Size D
Q Clamp® - Size 4
Intercamp® - D48


Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
