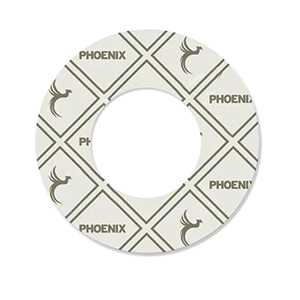

ANSI 150 Non-Asbestos Fibre IBC Flange Gasket

ANSI 150 Non-Asbestos Fibre IBC Flange Gasket

An ANSI 150 Inner Bolt Circle (IBC) WRAS Approved non-asbestos PG-X compressed fibre flange gasket to BS7531 Grade X.

Description

PG-X is a high performance grade of compressed fibre sheet material based on aramid and inorganic fibres with a nitrile binding system.

Application

PG-X is a superior performance material meeting the requirements of BS7531 Grade X and with outstanding mechanical properties. It is suitable for many fluids including hydrocarbons, gases, dilute acids and alkalis.

Typical Physical Properties

Thickness: 1.5mm
Density: 1.8g/cc
Tensile Strength: ASTM F152 14Mpa
Compression: ASTM F36J 7% to 15%
Recovery: ASTM 36J 65%
Residual Stress: BS7531 (40N/mm² @ 300°) 26MPa
Gas leakage: BS7531 0.5 ml/min
ASTM Oil 1: ASTM F146 2.5%
ASTM Oil 3: ASTM F146 5.0%
ASTM Fuel B: ASTM F146 4.0%
Code Description Price Quantity
016ASA150015 1/2" NB ANSI 150 IBC Flange Gasket
£1.56 (exc VAT) each
£1.87 (inc VAT)
-
+
016ASA150020 3/4" NB ANSI 150 IBC Flange Gasket
£1.67 (exc VAT) each
£2.00 (inc VAT)
-
+
016ASA150025 1" NB ANSI 150 IBC Flange Gasket
£1.84 (exc VAT) each
£2.21 (inc VAT)
-
+
016ASA150032 1 1/4" NB ANSI 150 IBC Flange Gasket
£2.36 (exc VAT) each
£2.83 (inc VAT)
-
+
016ASA150040 1 1/2" ANSI 150 IBC Flange Gasket
£3.14 (exc VAT) each
£3.77 (inc VAT)
-
+
016ASA150050 2" ANSI 150 IBC Flange Gasket
£3.40 (exc VAT) each
£4.08 (inc VAT)
-
+
016ASA150065 2 1/2" ANSI 150 IBC Flange Gasket
£3.93 (exc VAT) each
£4.72 (inc VAT)
-
+
016ASA150080 3" ANSI 150 IBC Flange Gasket
£4.26 (exc VAT) each
£5.11 (inc VAT)
-
+
016ASA150100 4" ANSI 150 IBC Flange Gasket
£4.86 (exc VAT) each
£5.83 (inc VAT)
-
+
016ASA150125 5" ANSI 150 IBC Flange Gasket
£6.50 (exc VAT) each
£7.80 (inc VAT)
-
+
016ASA150150 6" ANSI 150 IBC Flange Gasket
£7.85 (exc VAT) each
£9.42 (inc VAT)
-
+
016ASA150200 8" ANSI 150 IBC Flange Gasket
£9.65 (exc VAT) each
£11.58 (inc VAT)
-
+
016ASA150250 10" ANSI 150 IBC Flange Gasket
£15.18 (exc VAT) each
£18.22 (inc VAT)
-
+
016ASA150300 12" ANSI 150 IBC Flange Gasket
£19.53 (exc VAT) each
£23.44 (inc VAT)
-
+
