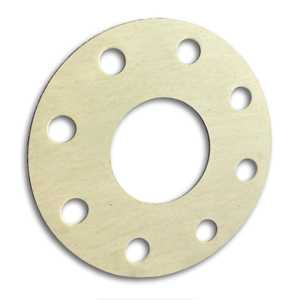

Table F Non-Asbestos Fibre Full Face Flange Gasket

Table F Non-Asbestos Fibre Full Face Flange Gasket

A Table F full face WRAS Approved non-asbestos PG-X compressed fibre flange gasket to BS7531 Grade X.

Description

PG-X is a high performance grade of compressed fibre sheet material based on aramid and inorganic fibres with a nitrile binding system.

Application

PG-X is a superior performance material meeting the requirements of BS7531 Grade X and with outstanding mechanical properties. It is suitable for many fluids including hydrocarbons, gases, dilute acids and alkalis.

Typical Physical Properties

Thickness: 1.5mm
Density: 1.8g/cc
Tensile Strength: ASTM F152 14Mpa
Compression: ASTM F36J 7% to 15%
Recovery: ASTM 36J 65%
Residual Stress: BS7531 (40N/mm² @ 300°C) 26MPa
Gas leakage: BS7531 0.5ml/min
ASTM Oil 1: ASTM F146 2.5%
ASTM Oil 3: ASTM F146 5.0%
ASTM Fuel B: ASTM F146 4.0%
Code Description Price Quantity
016TFFF015 1/2" NB Table F Full Face Flange Gasket
£1.56 (exc VAT) each
£1.87 (inc VAT)
-
+
016TFFF020 3/4" NB Table F Full Face Flange Gasket
£1.74 (exc VAT) each
£2.09 (inc VAT)
-
+
016TFFF025 1" NB Table F Full Face Flange Gasket
£2.06 (exc VAT) each
£2.47 (inc VAT)
-
+
016TFFF032 1 1/4" NB Table F Full Face Flange Gasket
£2.36 (exc VAT) each
£2.83 (inc VAT)
-
+
016TFFF040 1 1/2" NB Table F Full Face Flange Gasket
£2.82 (exc VAT) each
£3.38 (inc VAT)
-
+
016TFFF050 2" NB Table F Full Face Flange Gasket
£3.47 (exc VAT) each
£4.16 (inc VAT)
-
+
016TFFF065 2 1/2" NB Table F Full Face Flange Gasket
£6.55 (exc VAT) each
£7.86 (inc VAT)
-
+
016TFFF080 3" NB Table F Full Face Flange Gasket
£4.87 (exc VAT) each
£5.84 (inc VAT)
-
+
016TFFF100 4" NB Table F Full Face Flange Gasket
£9.46 (exc VAT) each
£11.35 (inc VAT)
-
+
016TFFF125 5" NB Table F Full Face Flange Gasket
£8.23 (exc VAT) each
£9.88 (inc VAT)
-
+
016TFFF150 6" NB Table F Full Face Flange Gasket
£9.59 (exc VAT) each
£11.51 (inc VAT)
-
+
