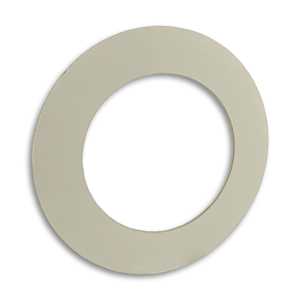

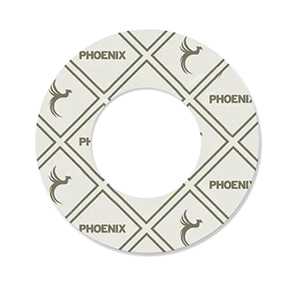

PN40 IBC Compressed Fibre Gasket

A PN40 Inner Bolt Circle (IBC) PG-X compressed fibre gasket to BS7531 Grade X and WRAS Approved



Description


PG-X is a high performance grade of compressed fibre sheet material based on aramid and inorganic fibres with a nitrile binding system.



Application


PG-X is a superior performance material meeting the requirements of BS7531 Grade X and with outstanding mechanical properties. It is suitable for many fluids including hydrocarbons, gases, dilute acids and alkalis.


Typical Physical Properties















































Thickness:1.5mm1
Density:1.8g/cc
Tensile Strength:ASTM F15214Mpa
Compression:ASTM F36J7% to 15%
Recovery:ASTM 36J65%
Residual Stress:BS7531 (40N/mm² @ 300&176;26MPa
Gas leakage:BS75310.5 ml/min
ASTM Oil 1:ASTM F1462.5%
ASTM Oil 3:ASTM F1465.0%
ASTM Fuel B:ASTM F1464.0%
Code Description Price Quantity
016PN40015 1/2" PN40 IBC PG-X Gasket
£0.75 (exc VAT) each
£0.90 (inc VAT)
-
+
016PN40020 3/4" PN40 IBC PG-X Gasket
£0.85 (exc VAT) each
£1.02 (inc VAT)
-
+
016PN40025 1" PN40 IBC PG-X Gasket
£0.96 (exc VAT) each
£1.15 (inc VAT)
-
+
016PN40032 1 1/4" PN40 IBC PG-X Gasket
£1.20 (exc VAT) each
£1.44 (inc VAT)
-
+
016PN40040 1 1/2" PN40 IBC PG-X Gasket
£1.35 (exc VAT) each
£1.62 (inc VAT)
-
+
016PN40050 2" PN40 IBC PG-X Gasket
£1.81 (exc VAT) each
£2.17 (inc VAT)
-
+
016PN40065 2 1/2" PN40 IBC PG-X Gasket
£2.09 (exc VAT) each
£2.51 (inc VAT)
-
+
016PN40080 3" PN40 IBC PG-X Gasket
£2.31 (exc VAT) each
£2.77 (inc VAT)
-
+
016PN40100 4" PN40 IBC PG-X Gasket
£3.92 (exc VAT) each
£4.70 (inc VAT)
-
+
016PN40125 5" PN40 IBC PG-X Gasket
£5.08 (exc VAT) each
£6.10 (inc VAT)
-
+
016PN40150 6" PN40 IBC PG-X Gasket
£7.02 (exc VAT) each
£8.42 (inc VAT)
-
+
016PN40200 8" PN40 IBC PG-X Gasket
£10.00 (exc VAT) each
£12.00 (inc VAT)
-
+
016PN40250 10" PN40 IBC PG-X Gasket
£12.56 (exc VAT) each
£15.07 (inc VAT)
-
+
