Table E Non-Asbestos Fibre Full Face Flange Gasket

Table E Non-Asbestos Fibre Full Face Flange Gasket

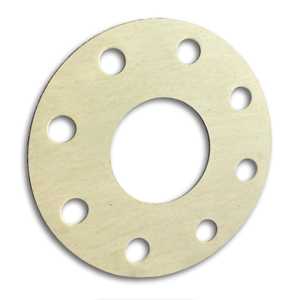

A Table E full face WRAS Approved non-asbestos PG-X compressed fibre flange gasket to BS7531 Grade X.

Description

PG-X is a high performance grade of compressed fibre sheet material based on aramid and inorganic fibres with a nitrile binding system.

Application

PG-X is a superior performance material meeting the requirements of BS7531 Grade X and with outstanding mechanical properties. It is suitable for many fluids including hydrocarbons, gases, dilute acids and alkalis.

Typical Physical Properties

Thickness: 1.5mm
Density: 1.8g/cc
Tensile Strength: ASTM F152 14Mpa
Compression: ASTM F36J 7% to 15%
Recovery: ASTM 36J 65%
Residual Stress: BS7531 (40N/mm² @ 300°C) 26MPa
Gas leakage: BS7531 0.5ml/min
ASTM Oil 1: ASTM F146 2.5%
ASTM Oil 3: ASTM F146 5.0%
ASTM Fuel B: ASTM F146 4.0%
Code Description Price Quantity
016TEFF015 1/2" NB Table E Full Face Flange Gasket
£3.24 (exc VAT) each
£3.89 (inc VAT)
-
+
016TEFF020 3/4" NB Table E Full Face Flange Gasket
£3.90 (exc VAT) each
£4.68 (inc VAT)
-
+
016TEFF025 1" NB Table E Full Face Flange Gasket
£4.22 (exc VAT) each
£5.06 (inc VAT)
-
+
016TEFF032 1 1/4" NB Table E Full Face Flange Gasket
£4.76 (exc VAT) each
£5.71 (inc VAT)
-
+
016TEFF040 1 1/2" NB Table E Full Face Flange Gasket
£5.35 (exc VAT) each
£6.42 (inc VAT)
-
+
016TEFF050 2" NB Table E Full Face Flange Gasket
£5.87 (exc VAT) each
£7.04 (inc VAT)
-
+
016TEFF065 2 1/2" NB Table E Full Face Flange Gasket
£8.71 (exc VAT) each
£10.45 (inc VAT)
-
+
016TEFF080 3" NB Table E Full Face Flange Gasket
£9.86 (exc VAT) each
£11.83 (inc VAT)
-
+
016TEFF100 4" NB Table E Full Face Flange Gasket
£11.26 (exc VAT) each
£13.51 (inc VAT)
-
+
016TEFF125 5" NB Table E Full Face Flange Gasket
£16.27 (exc VAT) each
£19.52 (inc VAT)
-
+
016TEFF150 6" NB Table E Full Face Flange Gasket
£15.48 (exc VAT) each
£18.58 (inc VAT)
-
+
016TEFF200 8" NB Table E Full Face Flange Gasket
£21.72 (exc VAT) each
£26.06 (inc VAT)
-
+
016TEFF250 10" NB Table E Full Face Flange Gasket
£25.13 (exc VAT) each
£30.16 (inc VAT)
-
+
016TEFF300 12" NB Table E Full Face Flange Gasket
£33.48 (exc VAT) each
£40.18 (inc VAT)
-
+
