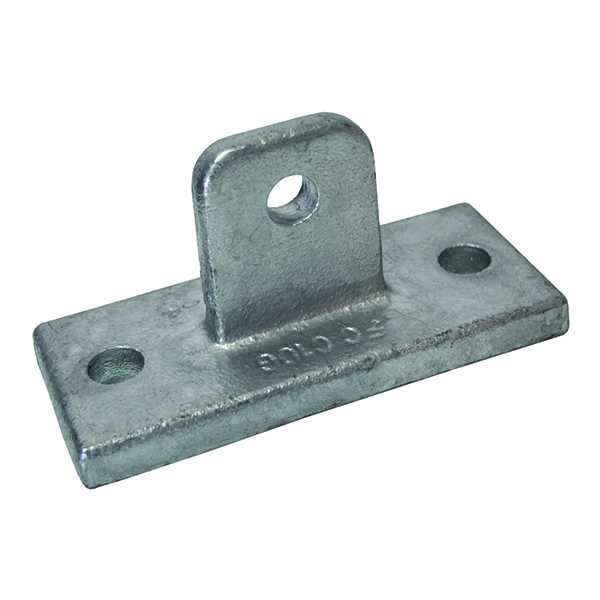

One Size C10 Swivel Base Tube/Pipe Clamp

The Swivel Base is designed to provide a base fixing. It is usually used in conjunction with a C36 type fitting to make a C46 type base swivel combination. This fitting does not provide sufficient rigidity to be used as a railing base without other means of support.

Standard: BS EN 1562:1997, grub screw to BS EN 1563:1997

Material: Main body - malleable iron, screw - ductile iron

Hot dipped galvanised to BS EN ISO 1461:1999.

Suitable for use with steel tube to BS EN 10255 and BS1387.

GUIDE TO TUBE SIZE REQUIRED

Fitting No.Fitting SizeMetric Tube SizeImperial Tube Size
G203/4"20mm3/4"
G251"25mm1"
G321 1/4"32mm 1 1/4"
G401 1/2"40mm1 1/2"
G502"50mm2"
