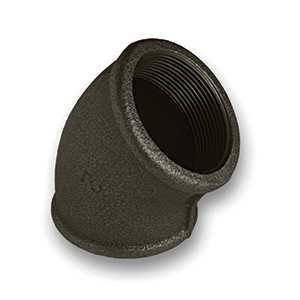

Black 45° FxF Elbow Malleable Pipe Fitting

A FM Approved TSP® malleable iron 45° female BSPP threaded elbow pipe fitting in black finish to conform to BS EN 10242.

Size Range		Reinforcement
1/2"" (15mm) to 4"" (100mm)		Beaded

Standard		Connection Type
ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive (PED)		Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1

Material		Finish
GJMB-350-10 Blackheart Malleable Cast Iron to EN1562		Self colour (black) - uncoated, natural iron finish with a light oil film to prevent rust

Maximum Operating Pressure		Maximum Operating Temperature
25 bar (PN25) up to 120°C		300°C at 20 bar (PN20)
Operating Temperature Range		Accreditation
-20°C to 300°C		FM Approved

Code	Description	Price	Quantity
037120B015	1/2" Black 45° Elbow	£1.66 (exc VAT) each £1.99 (inc VAT)	- +
037120B020	3/4" Black 45° Elbow	£2.05 (exc VAT) each £2.46 (inc VAT)	- +
037120B025	1" Black 45° Elbow	£3.02 (exc VAT) each £3.62 (inc VAT)	- +
037120B032	1 1/4" Black 45° Elbow	£5.56 (exc VAT) each £6.67 (inc VAT)	- +
037120B040	1 1/2" Black 45° Elbow	£7.15 (exc VAT) each £8.58 (inc VAT)	- +
037120B050	2" Black 45° Elbow	£9.48 (exc VAT) each £11.38 (inc VAT)	- +
039120B065	2 1/2" Black 45° Elbow	£22.38 (exc VAT) each £26.86 (inc VAT)	- +
039120B080	3" Black 45° Elbow	£28.66 (exc VAT) each £34.39 (inc VAT)	- +
039120B100	4" Black 45° Elbow	£39.49 (exc VAT) each £47.39 (inc VAT)	- +
