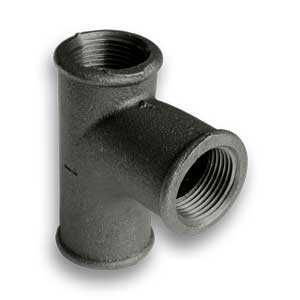

Black Pitcher Tee Malleable Pipe Fitting

A FM Approved TSP® malleable iron female BSPP threaded pitcher tee pipe fitting in black finish to conform to BS EN 10242.

Size Range		Reinforcement
1/2"" (15mm) to 2"" (50mm)		Beaded

Standard		Connection Type
ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive (PED)		Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1

Material		Finish
GJMB-350-10 Blackheart Malleable Cast Iron to EN1562		Self colour (black) - uncoated, natural iron finish with a light oil film to prevent rust

Maximum Operating Pressure		Maximum Operating Temperature
25 bar (PN25) up to 120°C		300°C at 20 bar (PN20)
Operating Temperature Range		Accreditation
-20°C to 300°C		FM Approved

Code	Description	Price	Quantity
037131BE015	1/2" Black Pitcher Tee	£3.01 (exc VAT) each £3.61 (inc VAT)	- +
037131BE025	1" Black Pitcher Tee	£5.49 (exc VAT) each £6.59 (inc VAT)	- +
037131BE050	2" Black Pitcher Tee	£18.47 (exc VAT) each £22.16 (inc VAT)	- +
