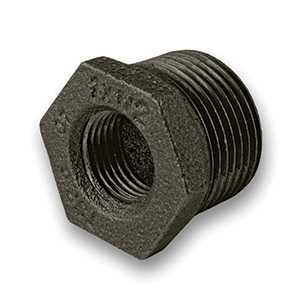

TSP® Black Reducing Bush Malleable Pipe Fitting

TSP® Black Reducing Bush Malleable Pipe Fitting

Size
Please select from the options above.
Quantity: - +

TSP® EN10242 Reducing Bush

A FM Approved TSP® malleable iron male BSPT taper thread to female BSPP parallel thread reducing bush pipe fitting in galvanised finish to BS EN 10242.

Size Range

3/8" x 1/8" (10mm x 6mm) to 4" x 3" (100mm x 80mm)

Reinforcement

Male BSPT taper threads/female BSPP parallel threads - EN10266-1/ISO 7-1, ISO 228-1

Standard

ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive

Connection Type

Male BSPT taper threads/female BSPP parallel threads - EN10266-1/ISO 7-1, ISO 228-1

Material

GJMB-350-10 Blackheart Malleable Cast Iron to EN1562

Finish

Self colour (black)

Maximum Operating Pressure

25 bar (PN25) up to 120°C

Maximum Operating Temperature

300°C at 20 bar (PN20)

Operating Temperature Range

-20°C to 300°C

Accreditation

FM Approved

TSP® malleable iron pipe fittings are primarily designed to be used with EN10255 steel tube and pipe.

TSP® Malleable Iron Pipe Fitting Catalogue download
