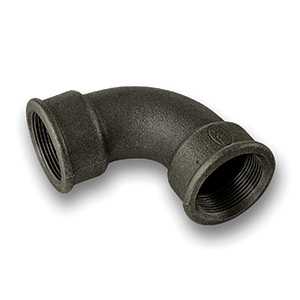

Black 90° FxF Short Bend Malleable Pipe Fitting

A FM Approved TSP® malleable iron 90° female BSPP threaded short bend pipe fitting in black finish to conform to BS EN 10242.

Size Range		Reinforcement
1/2"" (15mm) to 4"" (100mm)		Beaded

Standard		Connection Type
ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive (PED)		Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1

Material		Finish
GJMB-350-10 Blackheart Malleable Cast Iron to EN1562		Self colour (black) - uncoated, natural iron finish with a light oil film to prevent rust

Maximum Operating Pressure		Maximum Operating Temperature
25 bar (PN25) up to 120°C		300°C at 20 bar (PN20)
Operating Temperature Range		Accreditation
-20°C to 300°C		FM Approved

Code	Description	Price	Quantity
03702AB015	1/2" Black 90° Bend	£1.41 (exc VAT) each £1.69 (inc VAT)	- +
03702AB020	3/4" Black 90° Bend	£2.00 (exc VAT) each £2.40 (inc VAT)	- +
03702AB025	1" Black 90° Bend	£3.01 (exc VAT) each £3.61 (inc VAT)	- +
03702AB032	1 1/4" Black 90° Bend	£4.82 (exc VAT) each £5.78 (inc VAT)	- +
03702AB040	1 1/2" Black 90° Bend	£6.63 (exc VAT) each £7.96 (inc VAT)	- +
03702AB050	2" Black 90° Bend	£9.85 (exc VAT) each £11.82 (inc VAT)	- +
03902AB065	2 1/2" Black 90° Bend	£30.60 (exc VAT) each £36.72 (inc VAT)	- +
03902AB080	3" Black 90° Bend	£37.34 (exc VAT) each £44.81 (inc VAT)	- +
03902AB100	4" Black 90° Bend	£194.48 (exc VAT) each £233.38 (inc VAT)	- +
