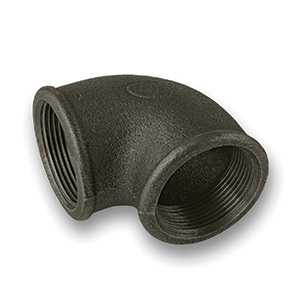

Black 90° FxF Elbow Malleable Pipe Fitting

A FM Approved TSP® malleable iron 90° female BSPP threaded elbow pipe fitting in black finish to conform to BS EN 10242.

Size Range		Reinforcement
1/2"" (15mm) to 4"" (100mm)		Beaded

Standard		Connection Type
ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive (PED)		Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1

Material		Finish
GJMB-350-10 Blackheart Malleable Cast Iron to EN1562		Self colour (black) - uncoated, natural iron finish with a light oil film to prevent rust

Maximum Operating Pressure		Maximum Operating Temperature
25 bar (PN25) up to 120°C		300°C at 20 bar (PN20)
Operating Temperature Range		Accreditation
-20°C to 300°C		FM Approved

Code	Description	Price	Quantity
037090BE008	1/4" Black 90° Elbow	£0.95 (exc VAT) each £1.14 (inc VAT)	- +
037090BE010	3/8" Black 90° Elbow	£0.81 (exc VAT) each £0.97 (inc VAT)	- +
037090BE015	1/2" Black 90° Elbow	£0.78 (exc VAT) each £0.94 (inc VAT)	- +
037090BE020	3/4" Black 90° Elbow	£1.12 (exc VAT) each £1.34 (inc VAT)	- +
037090BE025	1" Black 90° Elbow	£1.66 (exc VAT) each £1.99 (inc VAT)	- +
037090BE032	1 1/4" Black 90° Elbow	£3.01 (exc VAT) each £3.61 (inc VAT)	- +
037090BE040	1 1/2" Black 90° Elbow	£4.58 (exc VAT) each £5.50 (inc VAT)	- +
037090BE050	2" Black 90° Elbow	£5.43 (exc VAT) each £6.52 (inc VAT)	- +
039090BE065	2 1/2" Black 90° Elbow	£12.65 (exc VAT) each £15.18 (inc VAT)	- +
039090BE080	3" Black 90° Elbow	£19.10 (exc VAT) each £22.92 (inc VAT)	- +
039090BE100	4" Black 90° Elbow	£33.61 (exc VAT) each £40.33 (inc VAT)	- +
