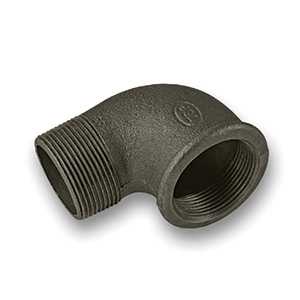

Black 90° MxF Elbow Malleable Pipe Fitting

A FM Approved TSP® malleable iron 90° male BSPT thread to female BSPP thread elbow pipe fitting in black finish to conform to BS EN 10242.

Size Range		Reinforcement
1/8"" (6mm) to 4"" (100mm)		Beaded

Standard		Connection Type
ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive (PED)		Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1

Material		Finish
GJMB-350-10 Blackheart Malleable Cast Iron to EN1562		Self colour (black) - uncoated, natural iron finish with a light oil film to prevent rust

Maximum Operating Pressure		Maximum Operating Temperature
25 bar (PN25) up to 120°C		300°C at 20 bar (PN20)
Operating Temperature Range		Accreditation
-20°C to 300°C		FM Approved

Code	Description	Price	Quantity
037092B006	1/8" Black 90° Elbow	£1.26 (exc VAT) each £1.51 (inc VAT)	- +
037092B008	1/4" Black 90° Elbow	£1.15 (exc VAT) each £1.38 (inc VAT)	- +
037092B010	3/8" Black 90° Elbow	£1.17 (exc VAT) each £1.40 (inc VAT)	- +
037092B015	1/2" Black 90° Elbow	£0.88 (exc VAT) each £1.06 (inc VAT)	- +
037092B020	3/4" Black 90° Elbow	£1.40 (exc VAT) each £1.68 (inc VAT)	- +
037092B025	1" Black 90° Elbow	£1.95 (exc VAT) each £2.34 (inc VAT)	- +
037092B032	1 1/4" Black 90° Elbow	£3.39 (exc VAT) each £4.07 (inc VAT)	- +
037092B040	1 1/2" Black 90° Elbow	£4.77 (exc VAT) each £5.72 (inc VAT)	- +
037092B050	2" Black 90° Elbow	£6.14 (exc VAT) each £7.37 (inc VAT)	- +
039092B065	2 1/2" Black 90° Elbow	£14.26 (exc VAT) each £17.11 (inc VAT)	- +
039092B080	3" Black 90° Elbow	£18.91 (exc VAT) each £22.69 (inc VAT)	- +
039092B100	4" Black 90° Elbow	£33.07 (exc VAT) each £39.68 (inc VAT)	- +
