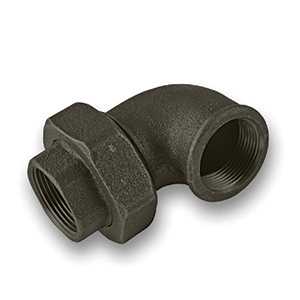

Black 90° FxF Union Elbow Malleable Pipe Fitting

A FM Approved TSP® malleable iron 90° female BSPP threaded union elbow pipe fitting in black finish to conform to BS EN 10242.

Size Range		Reinforcement
1/2"" (15mm) to 2"" (50mm)		Beaded

Standard		Connection Type
ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive (PED)		Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1

Material		Finish
GJMB-350-10 Blackheart Malleable Cast Iron to EN1562		Self colour (black) - uncoated, natural iron finish with a light oil film to prevent rust

Maximum Operating Pressure		Maximum Operating Temperature
25 bar (PN25) up to 120°C		300°C at 20 bar (PN20)
Operating Temperature Range		Accreditation
-20°C to 300°C		FM Approved

Code	Description	Price	Quantity
037096B015	1/2" Black 90° Union Elbow	£4.62 (exc VAT) each £5.54 (inc VAT)	- +
037096B020	3/4" Black 90° Union Elbow	£5.37 (exc VAT) each £6.44 (inc VAT)	- +
037096B025	1" Black 90° Union Elbow	£6.67 (exc VAT) each £8.00 (inc VAT)	- +
037096B032	1 1/4" Black 90° Union Elbow	£10.49 (exc VAT) each £12.59 (inc VAT)	- +
037096B040	1 1/2" Black 90° Union Elbow	£12.56 (exc VAT) each £15.07 (inc VAT)	- +
037096B050	2" Black 90° Union Elbow	£22.82 (exc VAT) each £27.38 (inc VAT)	- +
