1 1/2Inch Table F Full Face PG-X Gasket

1 1/2" Table F Full Face PG-X Gasket

Stock Code: 016TFFF040
In Stock
£1.97 (exc VAT) each
£2.36 (inc VAT)
Quantity: - +

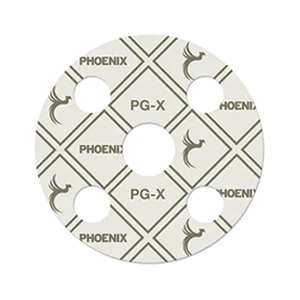

A Table F 1 1/2 inch/40mm Full Face PG-X compressed fibre gasket to BS7531 Grade X and WRAS Approved



Description


PG-X is a high performance grade of compressed fibre sheet material based on aramid and inorganic fibres with a nitrile binding system.



Application


PG-X is a superior performance material meeting the requirements of BS7531 Grade X and with outstanding mechanical properties. It is suitable for many fluids including hydrocarbons, gases, dilute acids and alkalis.


Typical Physical Properties















































Thickness:1.5mm1
Density:1.8g/cc
Tensile Strength:ASTM F15214Mpa
Compression:ASTM F36J7% to 15%
Recovery:ASTM 36J65%
Residual Stress:BS7531 (40N/mm² @ 300&176;26MPa
Gas leakage:BS75310.5 ml/min
ASTM Oil 1:ASTM F1462.5%
ASTM Oil 3:ASTM F1465.0%
ASTM Fuel B:ASTM F1464.0%
