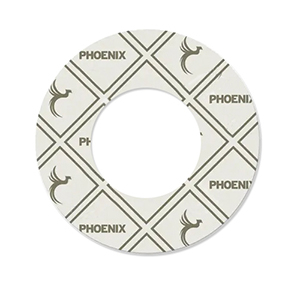

6Inch NB ANSI 300 IBC Flange Gasket

6" NB ANSI 300 IBC Flange Gasket

Stock Code: 016ASA300150
In Stock
£8.15 (exc VAT) each
£9.78 (inc VAT)
Quantity: - +

An ANSI 300 6 inch/150mm Inner Bolt Circle (IBC) WRAS Approved non-asbestos PG-X compressed fibre flange gasket to BS7531 Grade X.

Description

PG-X is a high performance grade of compressed fibre sheet material based on aramid and inorganic fibres with a nitrile binding system.

Application

PG-X is a superior performance material meeting the requirements of BS7531 Grade X and with outstanding mechanical properties. It is suitable for many fluids including hydrocarbons, gases, dilute acids and alkalis.

Typical Physical Properties

Thickness:1.5mm1
Density:1.8g/cc
Tensile Strength:ASTM F15214Mpa
Compression:ASTM F36J7% to 15%
Recovery:ASTM 36J65%
Residual Stress:BS7531 (40N/mm² @ 300&176;26MPa
Gas leakage:BS75310.5 ml/min
ASTM Oil 1:ASTM F1462.5%
ASTM Oil 3:ASTM F1465.0%
ASTM Fuel B:ASTM F1464.0%
