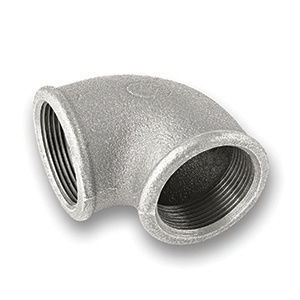

1/2" Galvanised 90º Elbow

Stock Code: 038090GE015

In Stock

TSP® EN10242 Galvanised 90º FxF Elbow

A FM Approved TSP® malleable iron 90º female BSPP threaded elbow pipe fitting in galvanised finish to BS EN 10242.

Size

1/2" (15mm)

Reinforcement

Beaded

Standard

ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive

Connection Type

Male BSPT taper threads/female BSPP parallel threads - EN10266-1/ISO 7-1, ISO 228-1

Material

GJMB-350-10 Blackheart Malleable Cast Iron to EN1562

Finish

HDG galvanised cast iron (minimum 70μm per 500gr/m²)

Maximum Operating Pressure

25 bar (PN25) up to 120ºC

Maximum Operating Temperature

300ºC at 20 bar (PN20)

Operating Temperature Range

-20ºC to 300ºC

Accreditation

FM Approved

TSP® malleable iron pipe fittings are primarily designed to be used with EN10255 steel tube and pipe.
